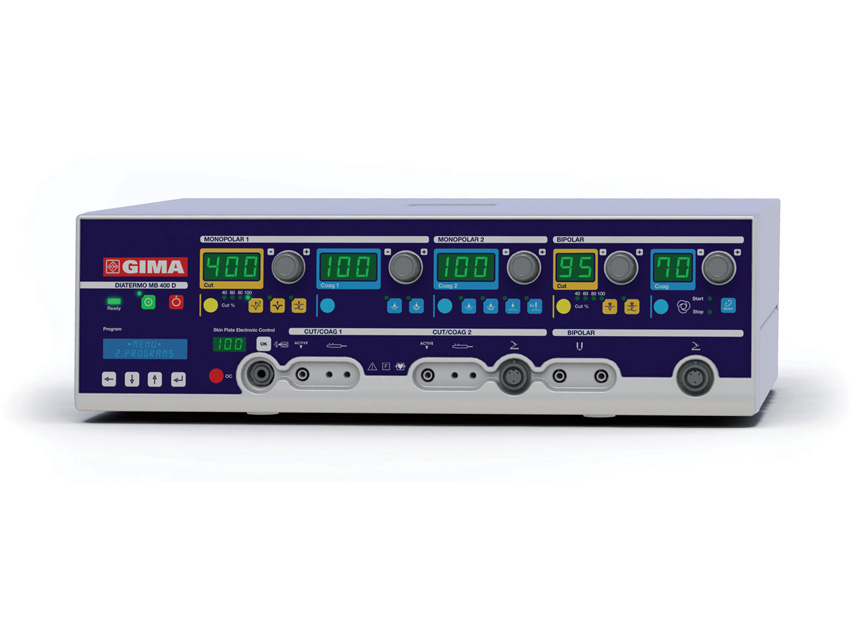

DIATERMO MB 400D HOSPITAL

Name: DIATERMO MB 400D HOSPITAL
SKU: GM30635
Price: 6792.50 EUR
Availability: InStock

6.792,50 €

DIATERMO MB 400D

Unidad de venta: 1 unidad
Pedido mínimo de productos de envío desde Italia: 150,00 € sin IVA (combinables entre sí)

Código: GM30635

Categoría: ELECTROCIRUGIA

DIATERMO MB 400D

High frequency electrosurgical equipments suitable to supply power for monopolar cut and coagulated cut (with different levels of coagulation), bipolar cut and coagulation.

TWIN OPERATIVE ACTIVITY

two output channels for monopolar cutting
two independent setting and output channels for the most frequent monopolar coagulation

CONTROLLED CUTTING PROCEDURES

enhanced cutting current for eschar free incision
cutting current with selectable coagulating property for bleeding controlled dissection
low capacitive coupling by slow BLEND current for endoscopic procedures

TWIN CONTROLLED COAGULATION PROCEDURES

SPEEDY coagulation and DEEP coagulation available to two operators
SPRAY coagulation by hand switch or foot switch controls

EXTENSIVE BIPOLAR FEATURES

bipolar cutting current with selectable bleeding control
slow BLEND cutting current
automatic start/stop coagulation functions

SURGEON AND PATIENT TOTAL SAFETY

acceptability of contact impedance between patient body and return electrode continuously monitored by Skin Plate Electronic Control (SPEC)
H.F. Leakage currents continuously monitored
mains fluctuation automatically compensated before delivery of HF power

PERSONALIZED PROCEDURES

independent choice of coagulation currents and power levels by each of two operators
up to 10 procedures can be configured and re-called

EXTENSION DRIVER AND INTERLOCK SIGNALS

driven output connection to external Argon Plasma unit and Smoke Evacuator unit

AUTOMATIC SELF DIAGNOSIS

automatic diagnostic control of the complete functionality of electronic unit and connected accessories with coded report of failures.

Made in Italy.

OUTPATIENT SURGERY
GENERAL SURGERY
PAEDIATRIC SURGERY
PLASTIC SURGERY
THORAX SURGERY
VASCULAR SURGERY
DERMATOLOGY
ENDOSCOPY
GASTROENTEROLOGY
GYNAECOLOGY
NEUROSURGERY
ORTHOPEDICS
OTORHINOLARINGOLOGY
PNEUMOLOGY
UROLOGY
VETERINARY

Especificaciones técnicas

Maximum out power monopolar pure CUT	400 W – 300 Ohm
Maximum out power monopolar cut-coag CUT80%	350 W – 300 Ohm
Maximum out power monopolar cut-coag CUT60%	250 W – 300 Ohm
Maximum out power monopolar cut-coag CUT40%	200 W – 300 Ohm
Maximum out power monopolar cut ENHANCED	250 W – 500 Ohm
Maximum out power monopolar cut-coag BLEND	250 W – 300 Ohm
Maximum out power monopolar coag SPEEDY	120 W – 500 Ohm
Maximum out power monopolar coag DEEP	120 W – 200 Ohm
Maximum out power monopolar coag SPRAY	100 W – 2000 Ohm
Maximum out power monopolar coag SPRAY ARGON	100 W – 2000 Ohm
Maximum out power bipolar CUT	95 W – 150 Ohm
Maximum out power bipolar cut-coag CUT80%	95 W – 150 Ohm
Maximum out power bipolar cut-coag CUT60%	95 W – 150 Ohm
Maximum out power bipolar cut-coag CUT40%	60 W – 150 Ohm
Maximum out power bipolar cut-coag BLEND	70 W – 100 Ohm
Working frequency monopolar / bipolar	425 kHz / 525 kHz
Patient circuit	F
Selectable input voltage	115-230 Vac
Mains frequency	50-60 Hz
Electrical input voltage	1000 VA
Size WxHxD mm	470x150x400
Weight	17.5 Kgs
Controls	Patient/Plate circuit monitoring, Output power monitoring, Self check control
Safety	EN60601-1, EN60601-1-2, EN60601-2-2, Electrical Class: I CF, MDD 93/42/EC Class: II b

Accesorios incluidos

1 – Power supply cord 5 m
1 – Two-button autoclavable handle (30536)
5 – Two-button cold sterilizable handle (30551)
1 – Flex steel neutral plate (30555)
1 – Cable for flex plate (30560)
5 – Rem disposable ground pads (30493)
2 – HP double Water proof foot switch (30604)
3 – Short, general surgery blade electrode 7 cm
3 – Long, general surgery blade electrode 16 cm
3 – Short, general surgery ball electrode Ø 4 mm, 6 cm
1 – Electrode brush
1 – User manual (IT, GB)
