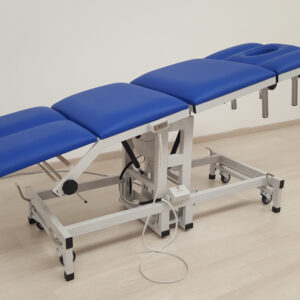

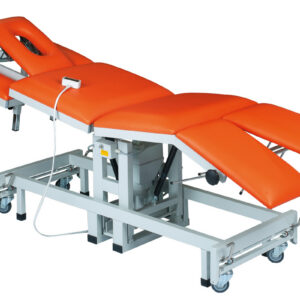

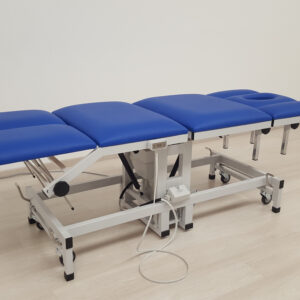

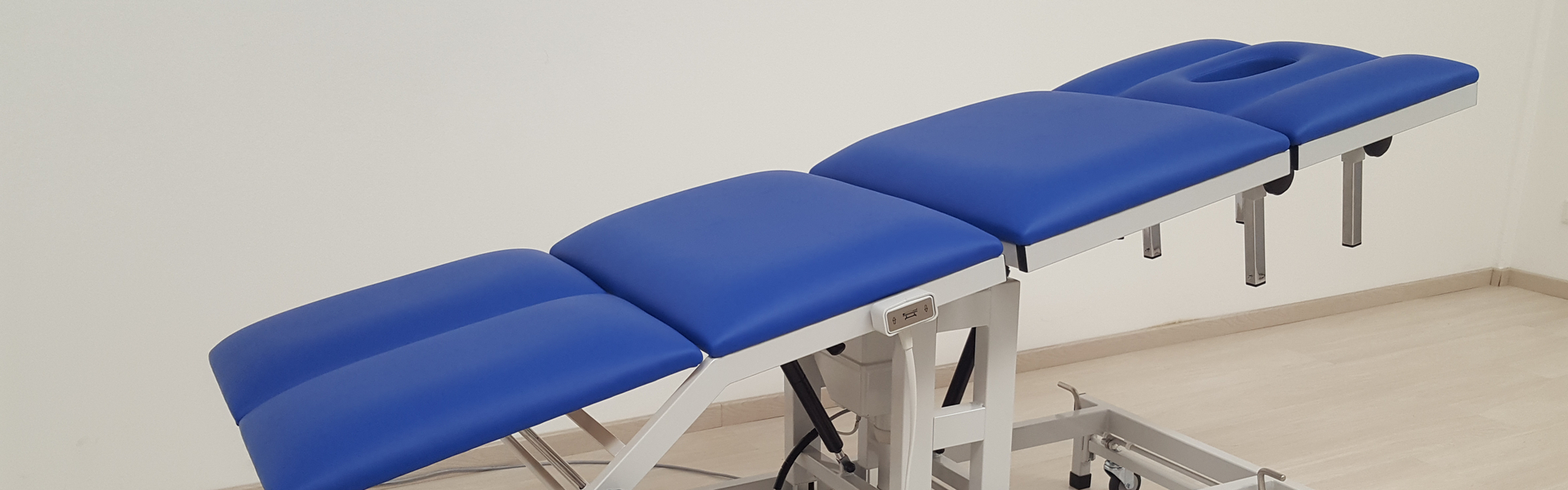

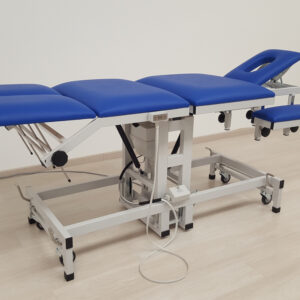

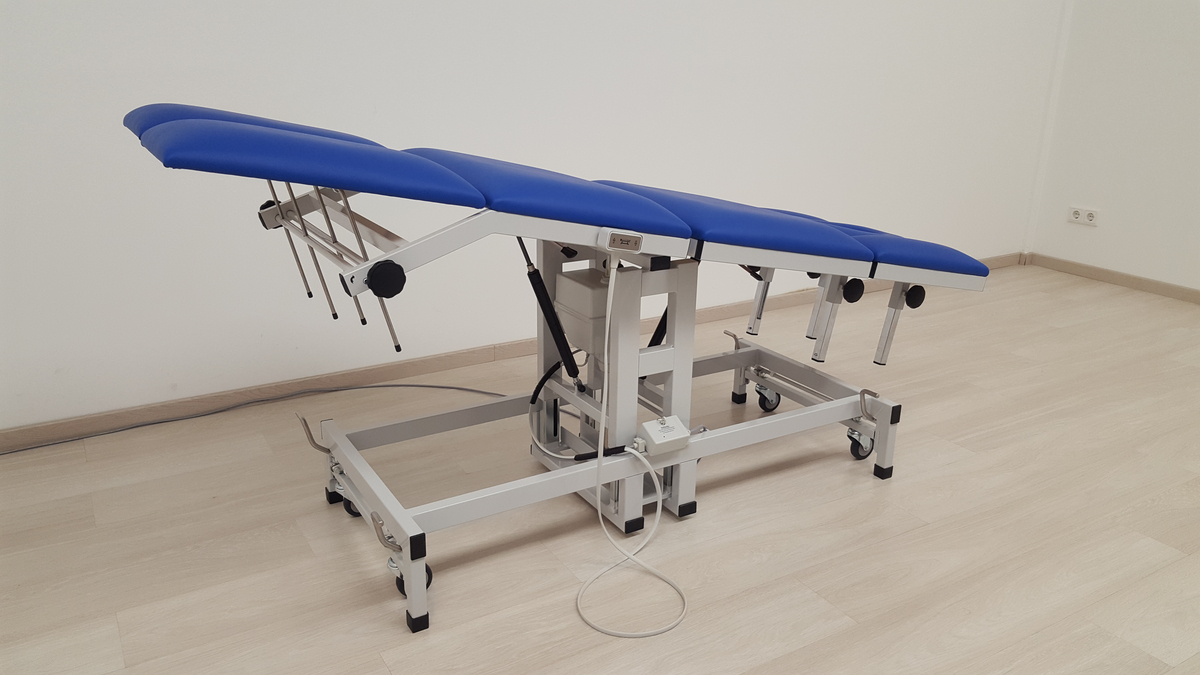

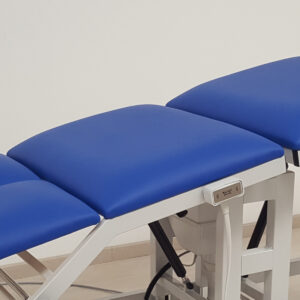

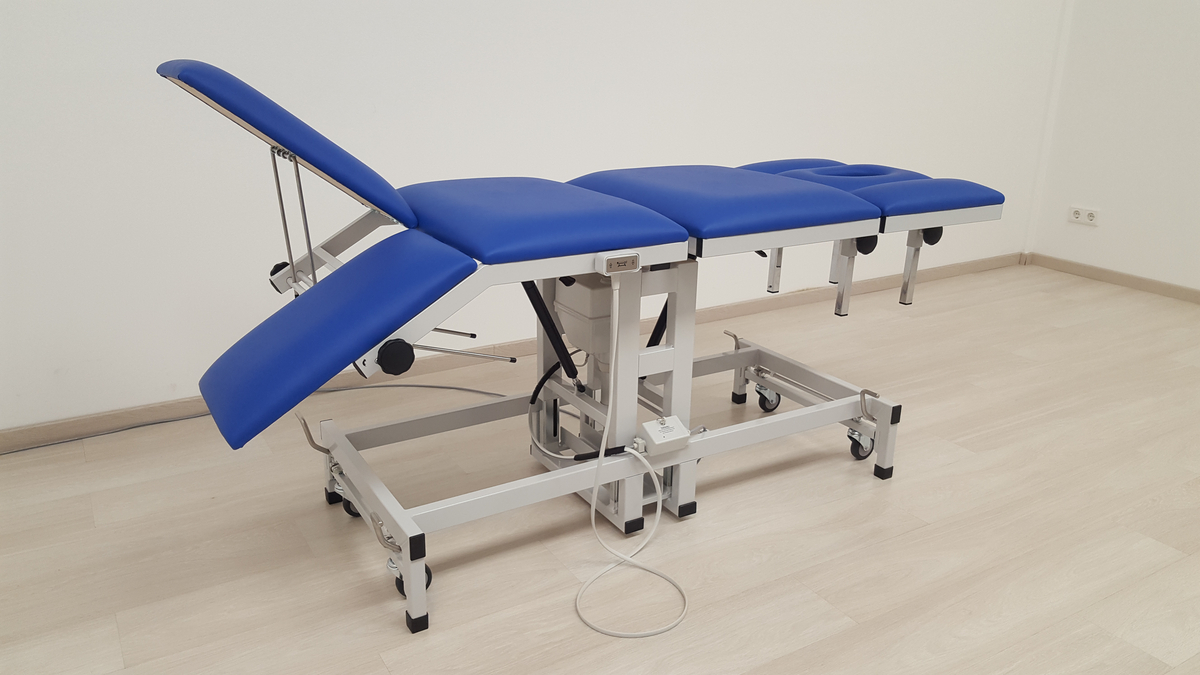

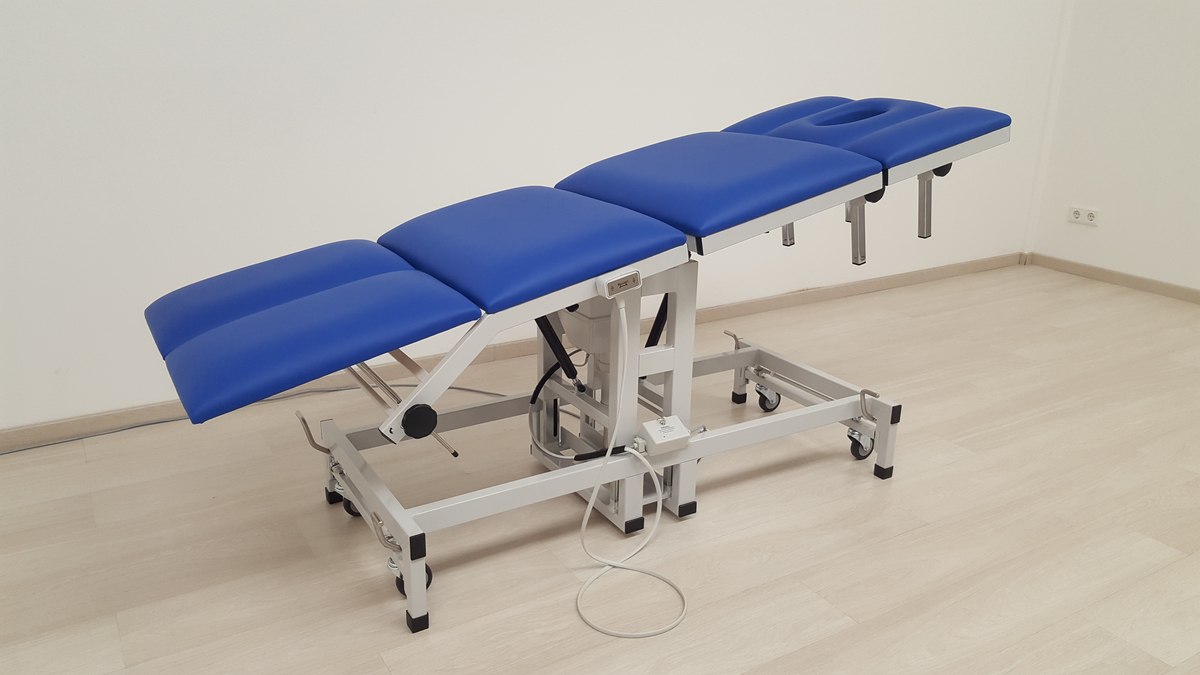

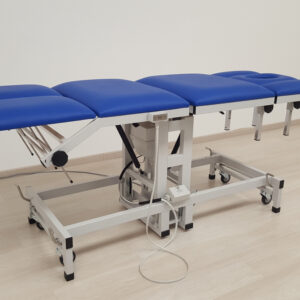

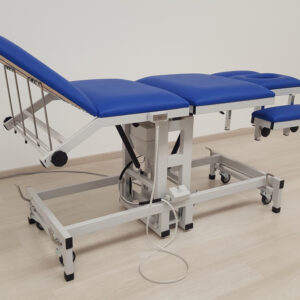

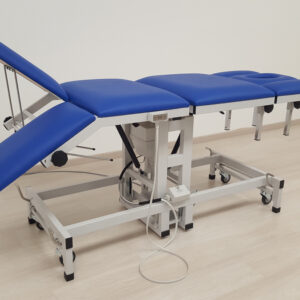

Camilla de terapia AGA-THERA de 7 secciones

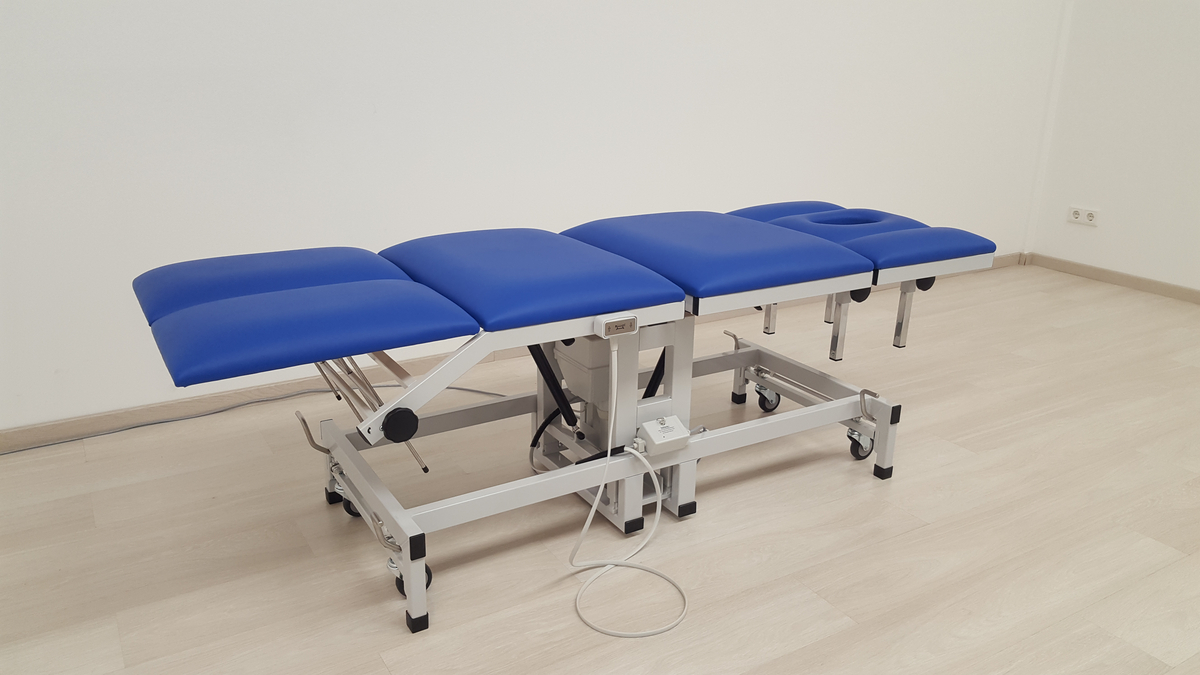

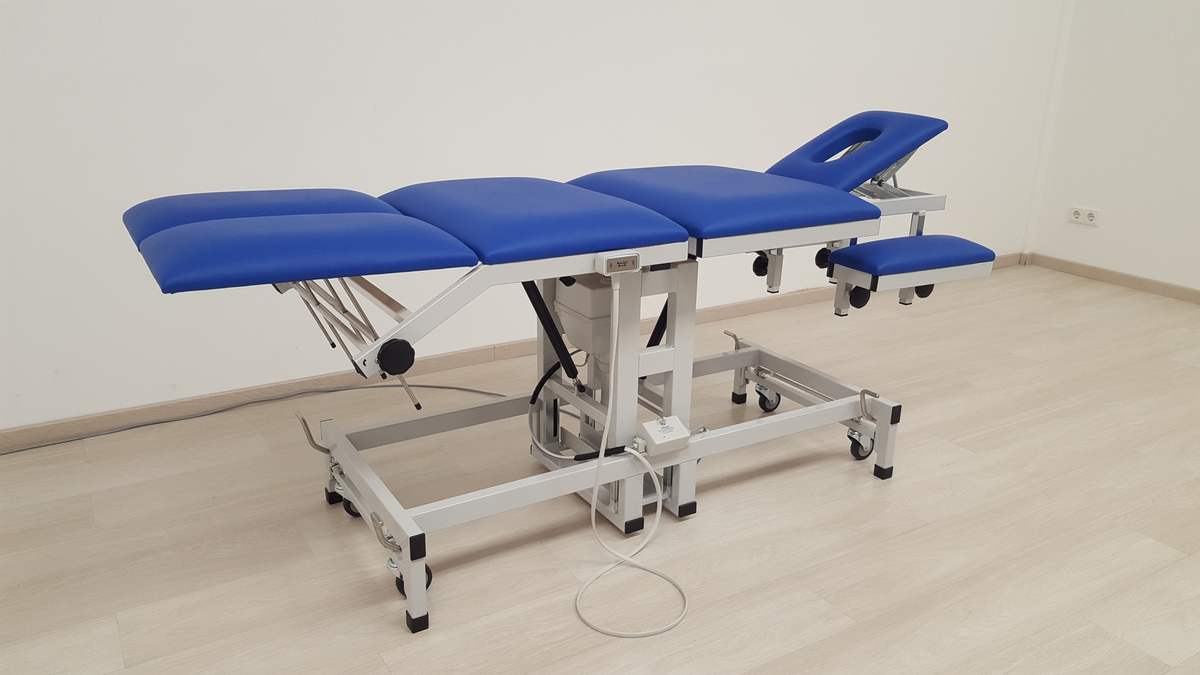

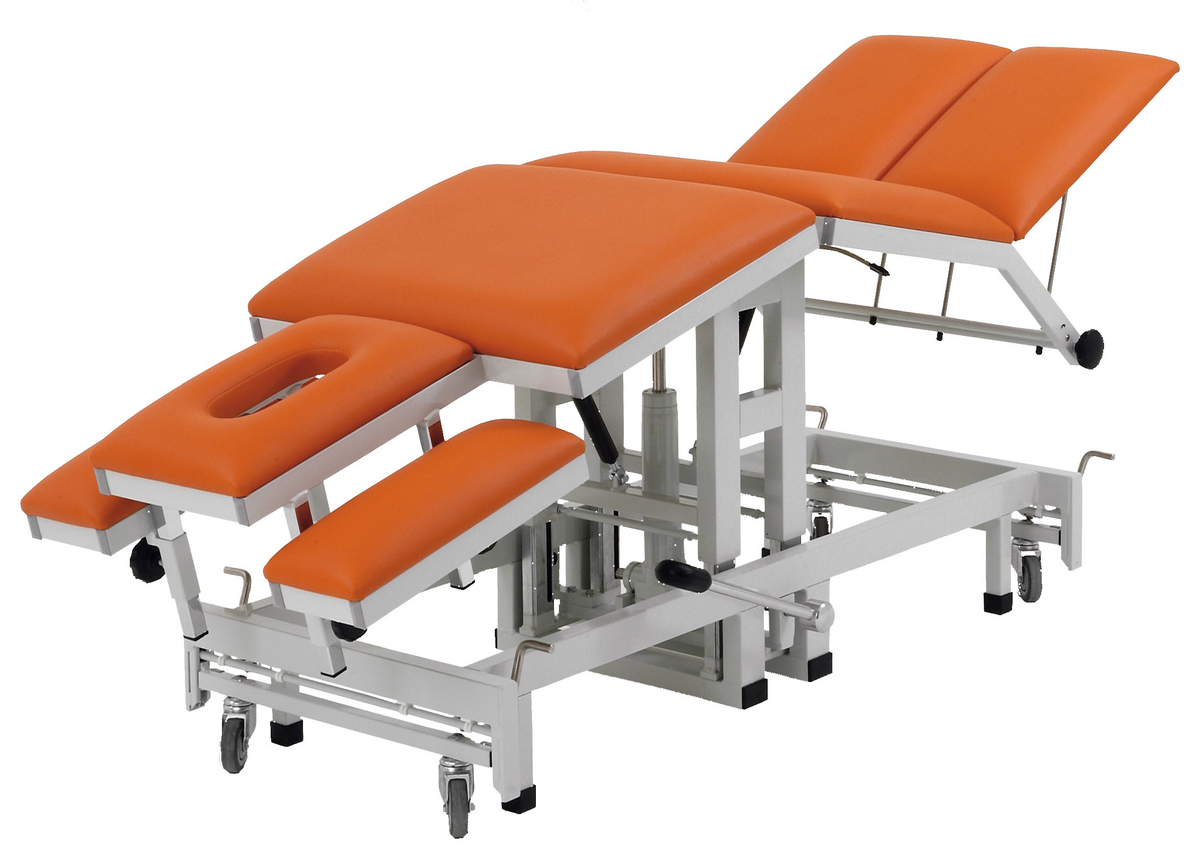

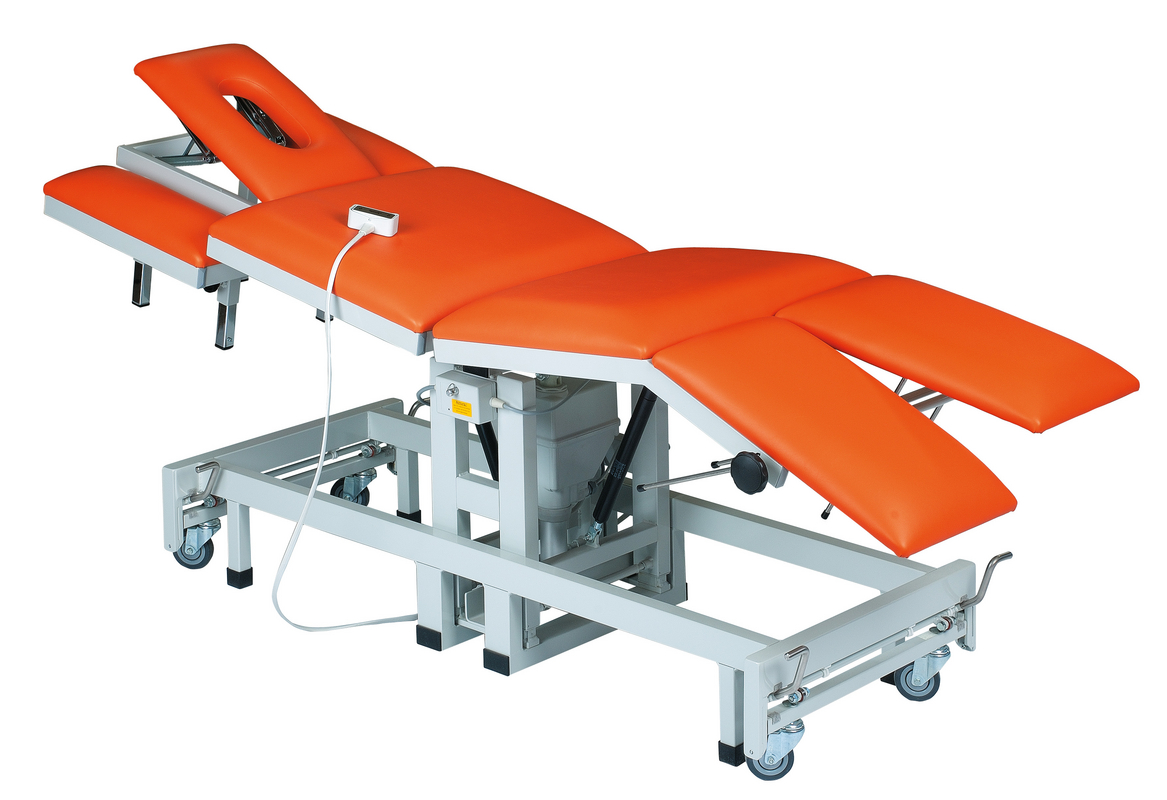

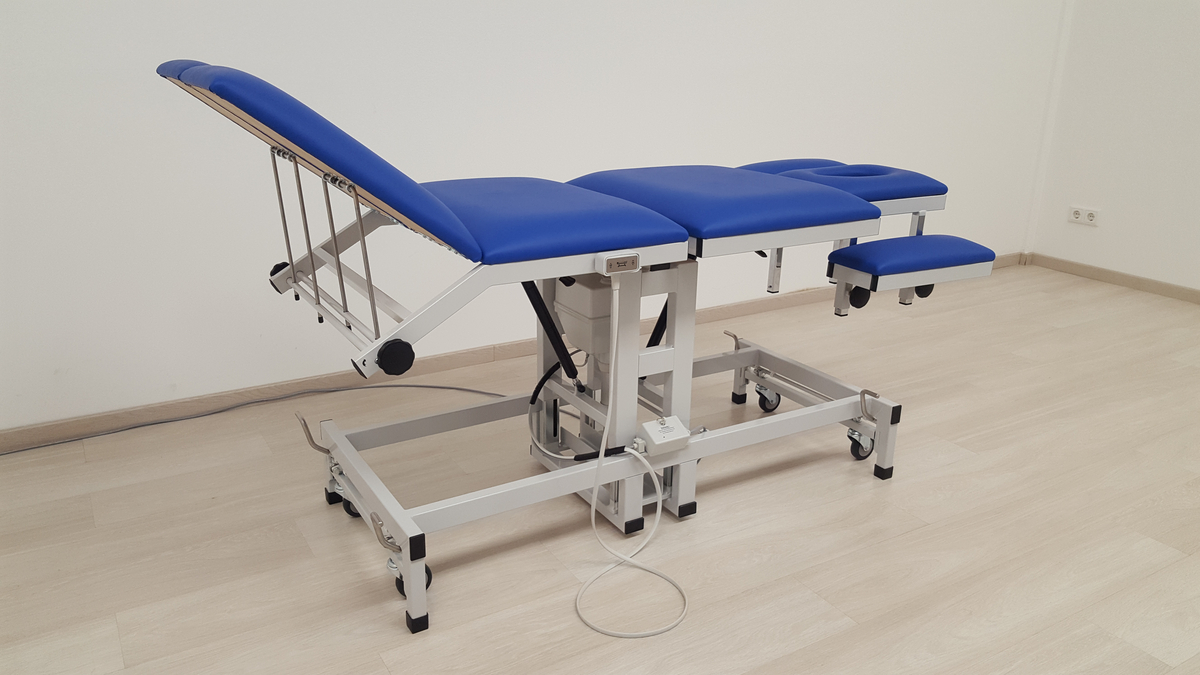

The AGA-THERA therapy tables feature a seven-section table surface and multiple adjustment options.

Therapy tables with multiple, continuous adjustment options

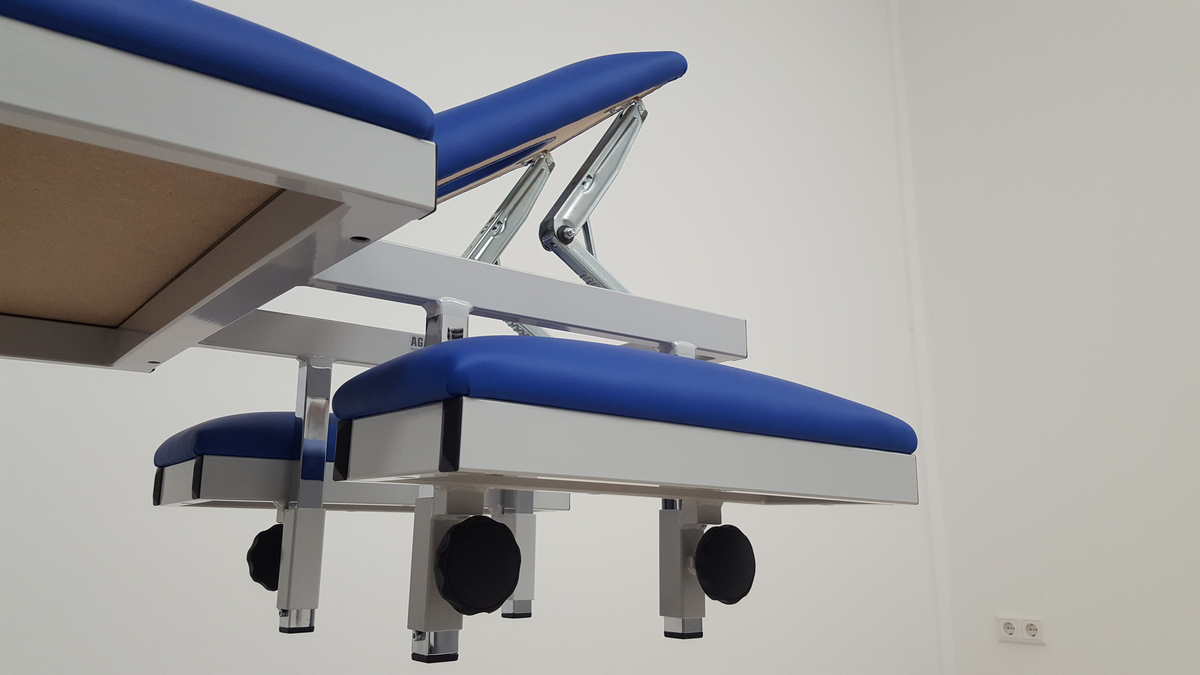

The AGA-THERA therapy tables were designed for the practices of chiropractors, orthopedists and therapists. Thanks to the many infinitely variable adjustment options for the height, the armrests, the legrests, the back section, the head section with facial cutout and the seat section, various lounger positions such as Trendelenburg/Anti-Trendelenburg and the drainage position can be adjusted.

In order to make the regularly recurring and everyday measures and treatments easier for patients and users, the therapy tables from AGA Sanitätsartikel are all equipped with a height adjustment mechanism as follows:

• Manual (hand crank), Article No.: TH-1065/H,
• Hydraulics, Article No.: TH-1065/Y,
• Electric motor, Article No.: TH-1065/E.

Features

• In order to avoid rocking and swinging movements of the lying surfaces, the therapy tables are manufactured with precision double square profiles.
• The manual height adjustment is done with a hand crank using maintenance-free gear with an optimal transmission ratio (i = 10mm/rev) for smooth, quick and easy operation, without much effort, even with heavier patients (up to 150 kg). After use, the crank handle can be pushed back under the tabletop.
• The hydraulic height adjustment is operated via the centrally built-in foot pump. The height adjustment of the therapy table can of course also be done with heavier patients (up to 150 kg) without any major effort. In order to be able to operate the hydraulics from both sides, it is possible to install an additional foot lever. This is available for an additional charge (Article No.: FPH-10).
• The electric motor height adjustment is controlled via a hand switch (alternatively – at no extra charge – via a foot switch) and can of course also be carried out with heavy patients (up to 150 kg). The electric drive used is maintenance-free and extremely quiet. The adjustment system is equipped with a key lock. Motor connection values: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
• The wide extension of the substructure, which is equipped with a mobile base on retractable castors ensures a high level of stability, even under stress load.
• With the retractable castors system, the universal therapy table is lifted onto castors (Ø 75 mm) using foot control or lowered onto feet for standing.
• The thickness of the seven upholstery segments (armrests, head, back, seat and leg sections) is 64 mm each.

The standard configuration includes:

• Mobile base on retractable castors, swivel castors Ø 75 mm.
• Floor protectors (clip-on caps) on the four adjustable feet.

The therapy tables can be equipped with a 5- or 6-section tabletop or a different coloured synthetic leather cover at additional cost. We will be pleased to provide further information upon request.
