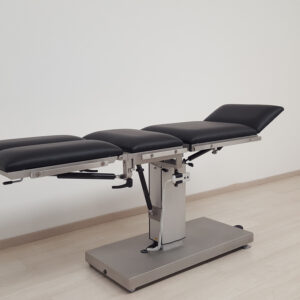

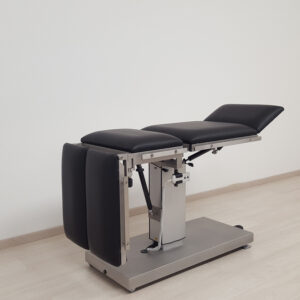

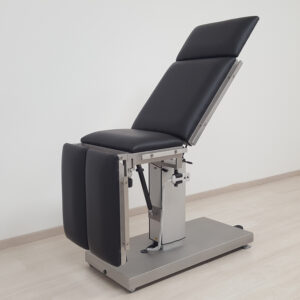

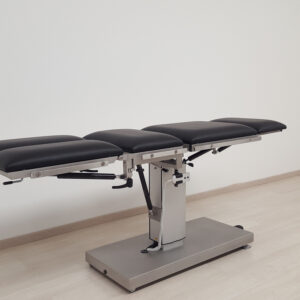

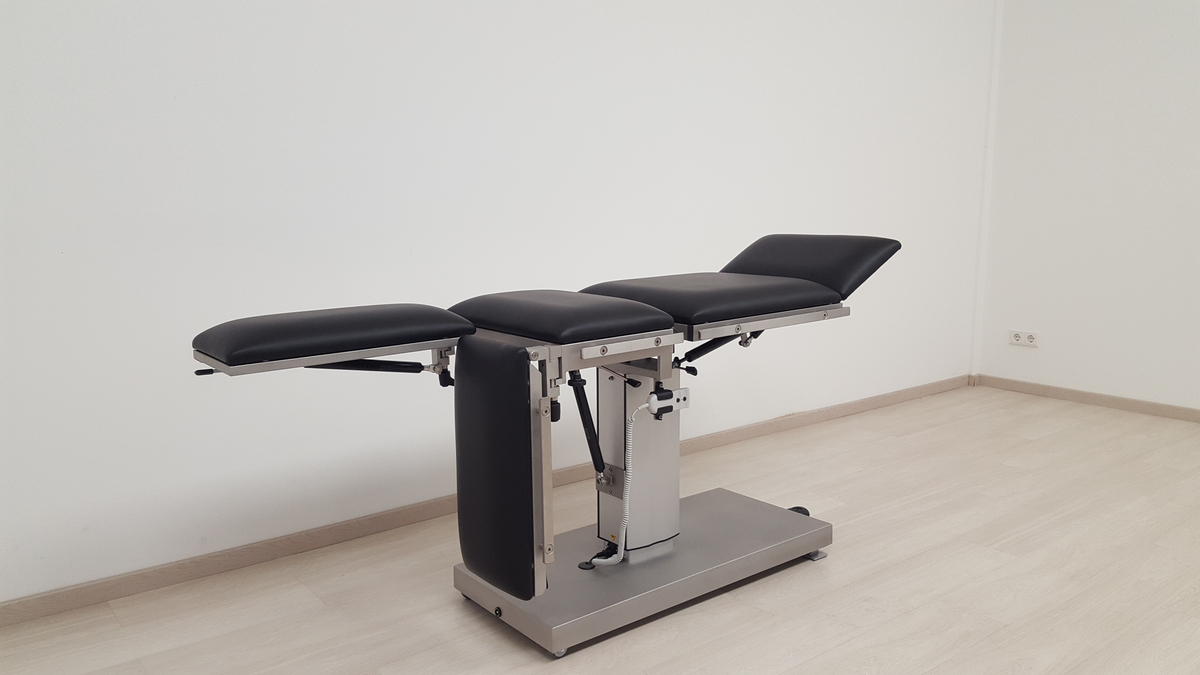

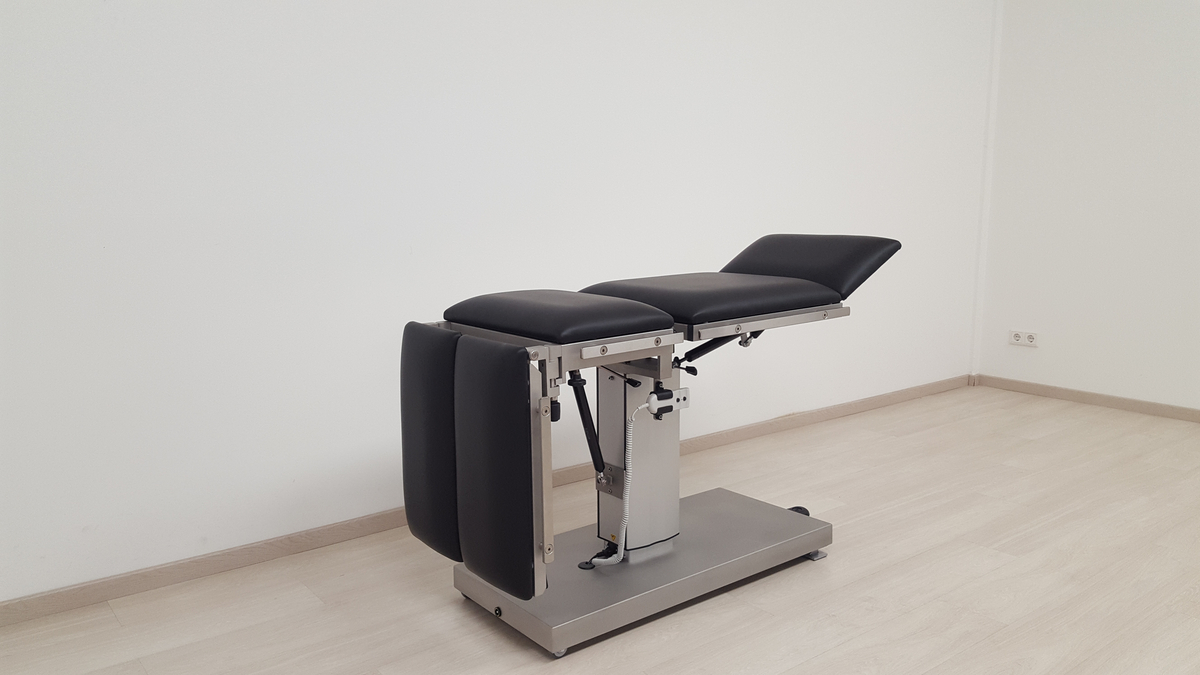

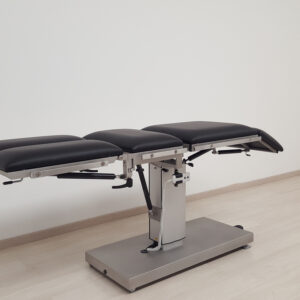

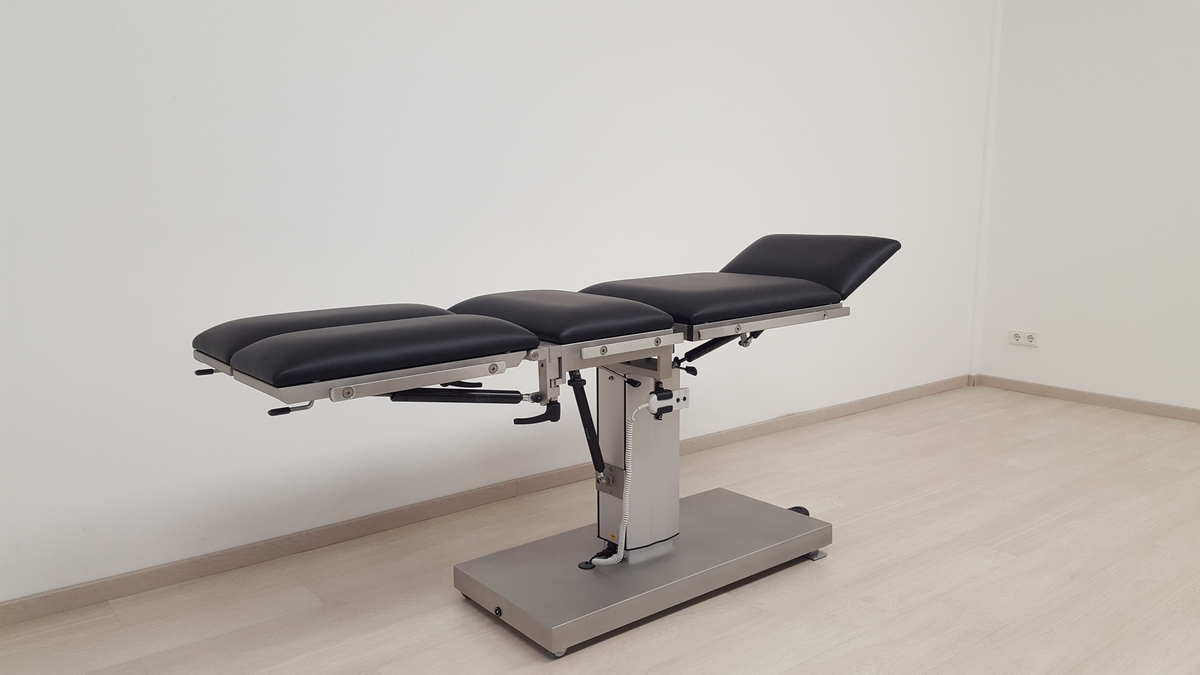

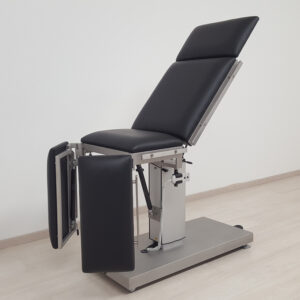

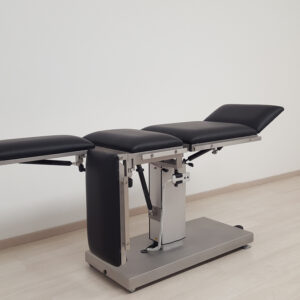

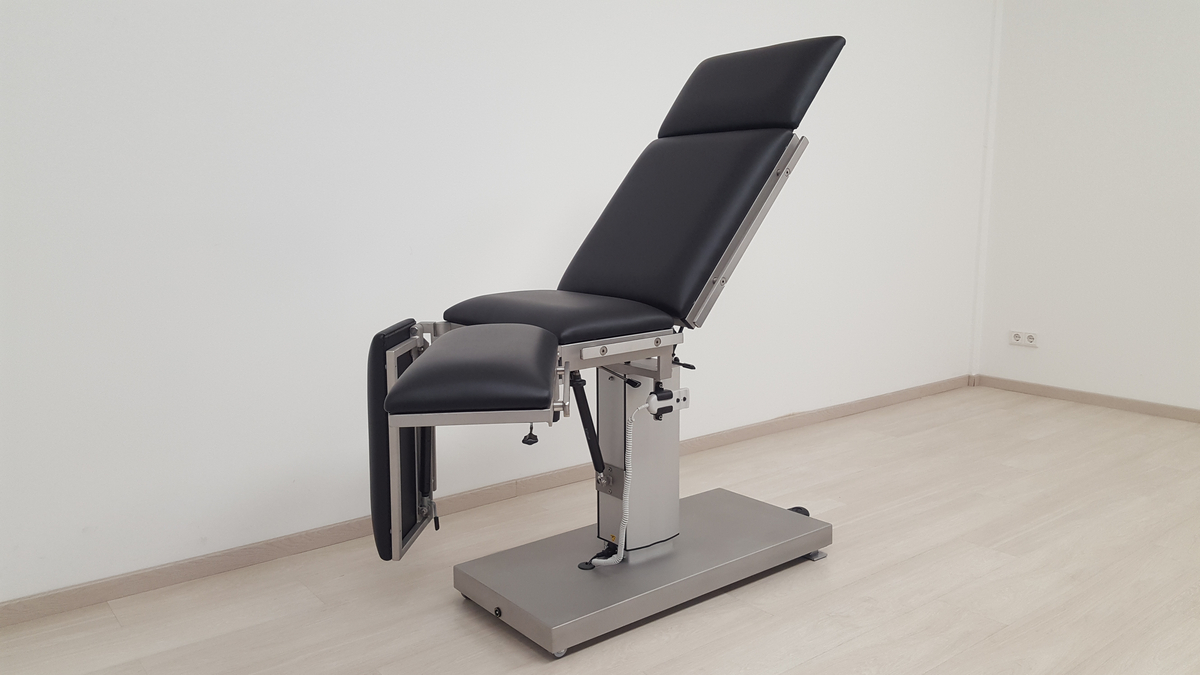

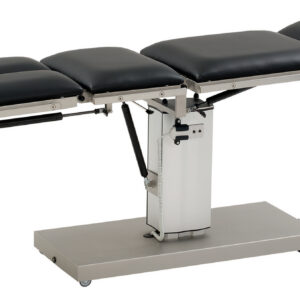

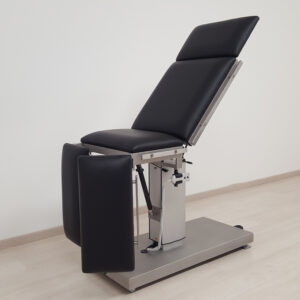

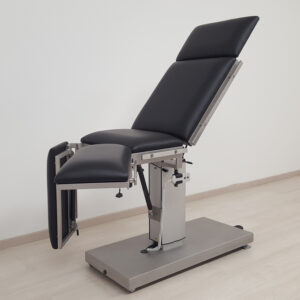

Mesa multifunción AGA-POWER-MAT con elevación eléctrica

The electric height-adjustable multi-function tables AGA-POWER-MAT stand out with their functionality.

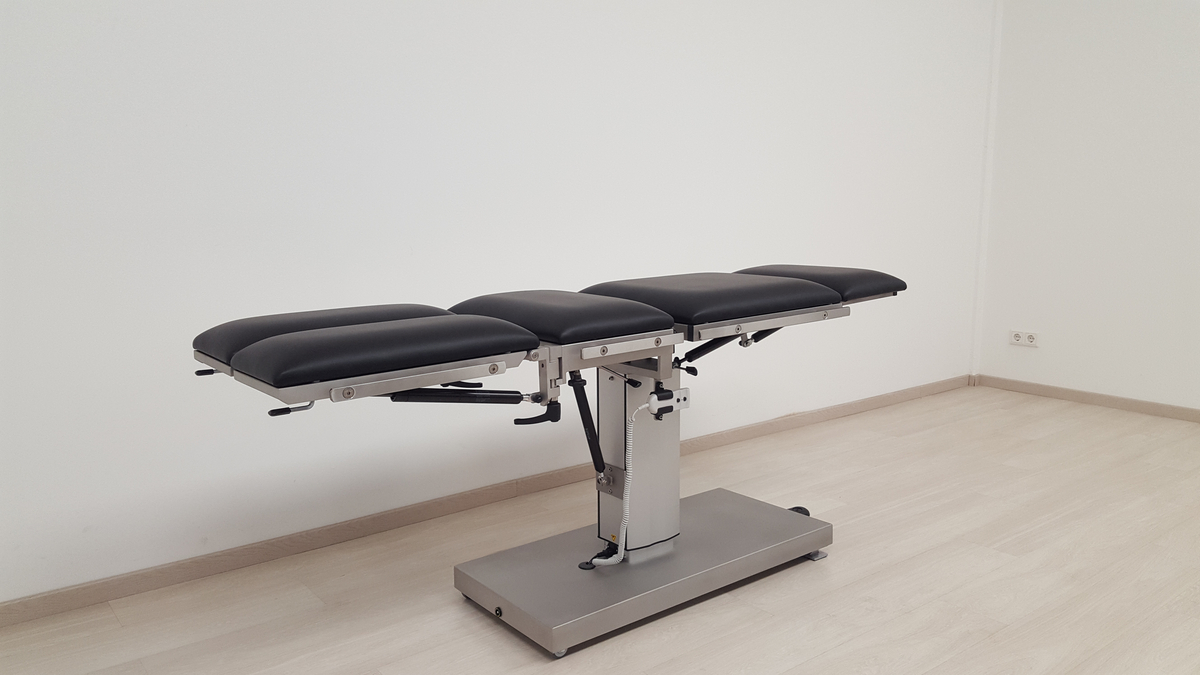

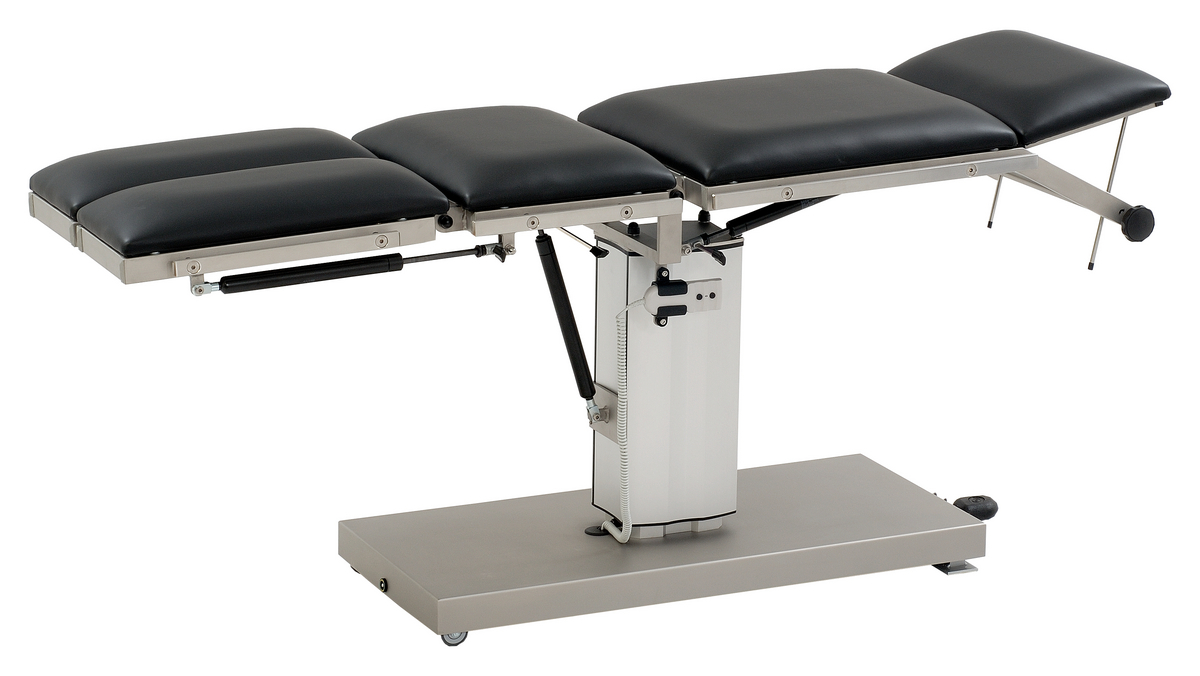

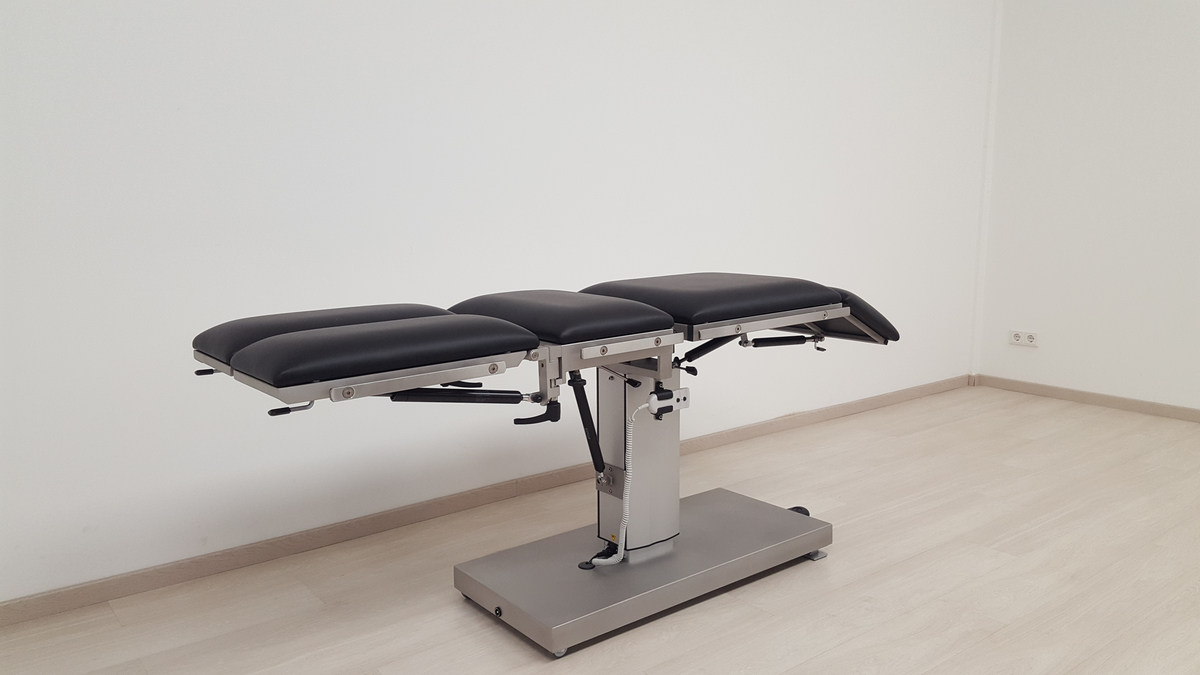

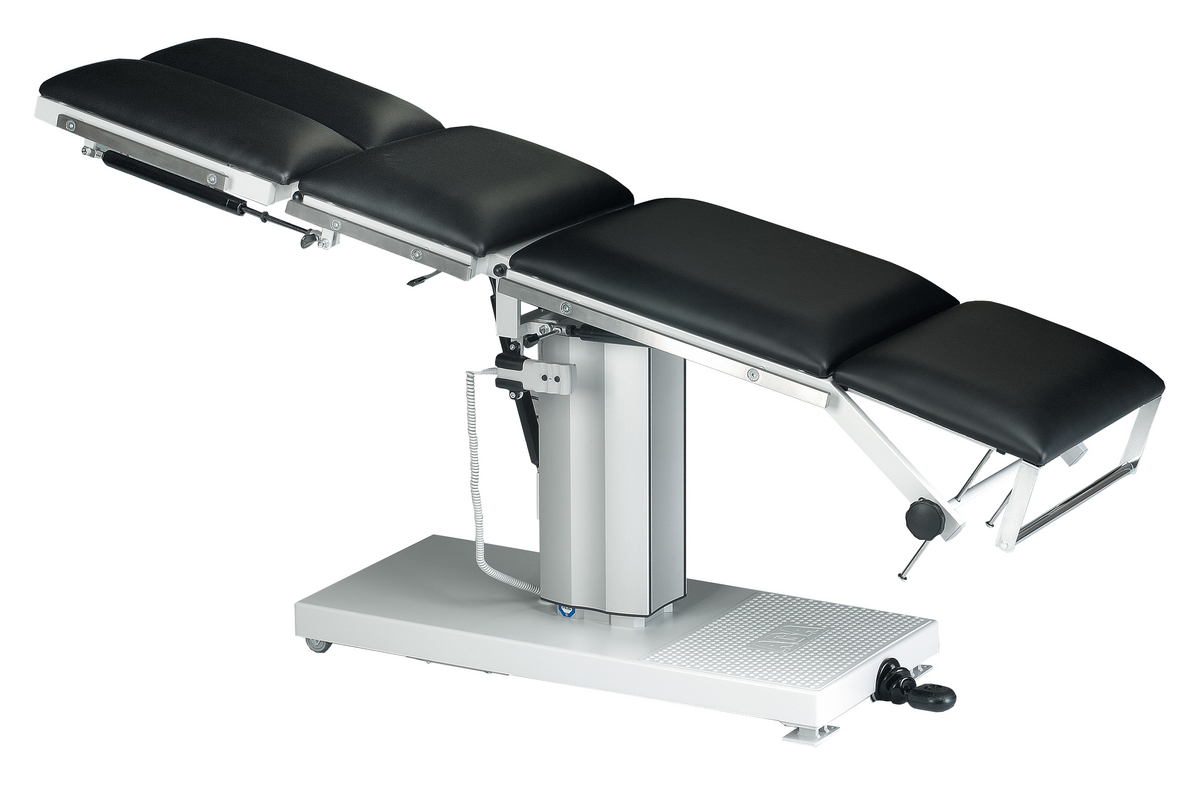

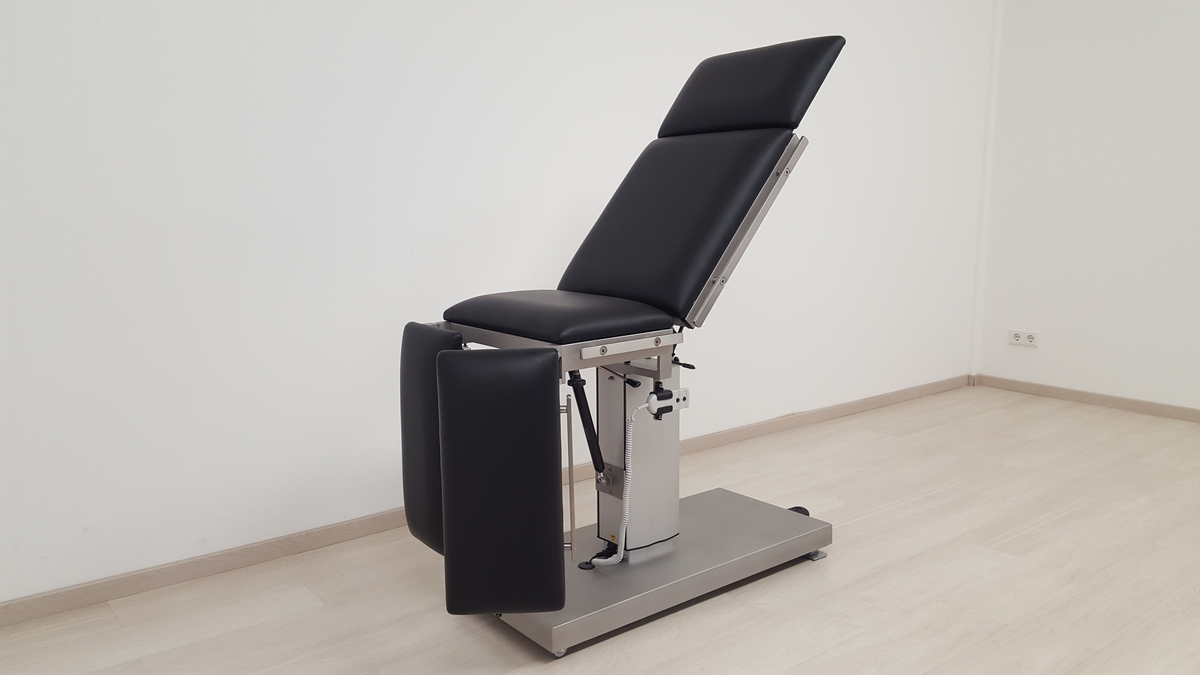

AGA-POWER-MAT Multi-function tables

The AGA-POWER-MAT multi-function tables are similar to the AGA-OP-POWER-MAT operating tables. The difference between these two models from AGA Sanitätsartikel is only in the type of height adjustment. The multi-function tables feature electric height adjustment, while the operating tables are supplied with hydraulic height adjustment.

The AGA-POWER-MAT tables are also available in two frame finishes. The multi-function table, Article No.: MP-1050/5E, has a coated frame and a base cover made of plastic, while the multi-function table, Article No.: MP-3050/5E, has a frame and a base cover made of glass bead-blasted stainless steel.

Features

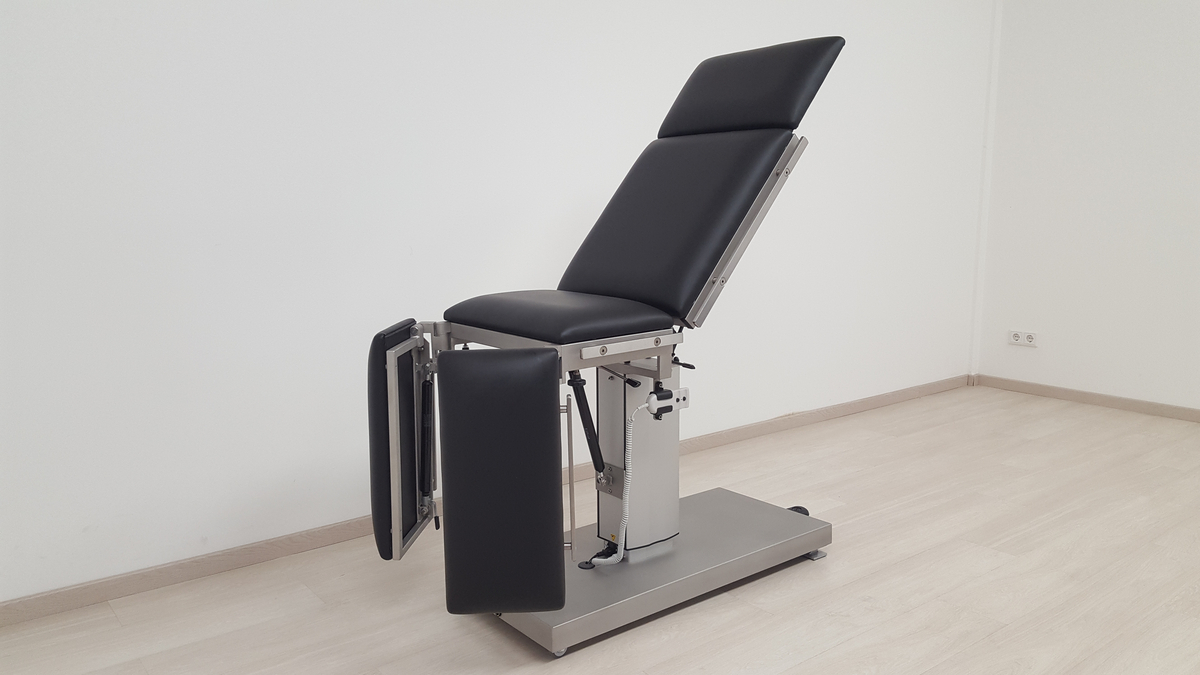

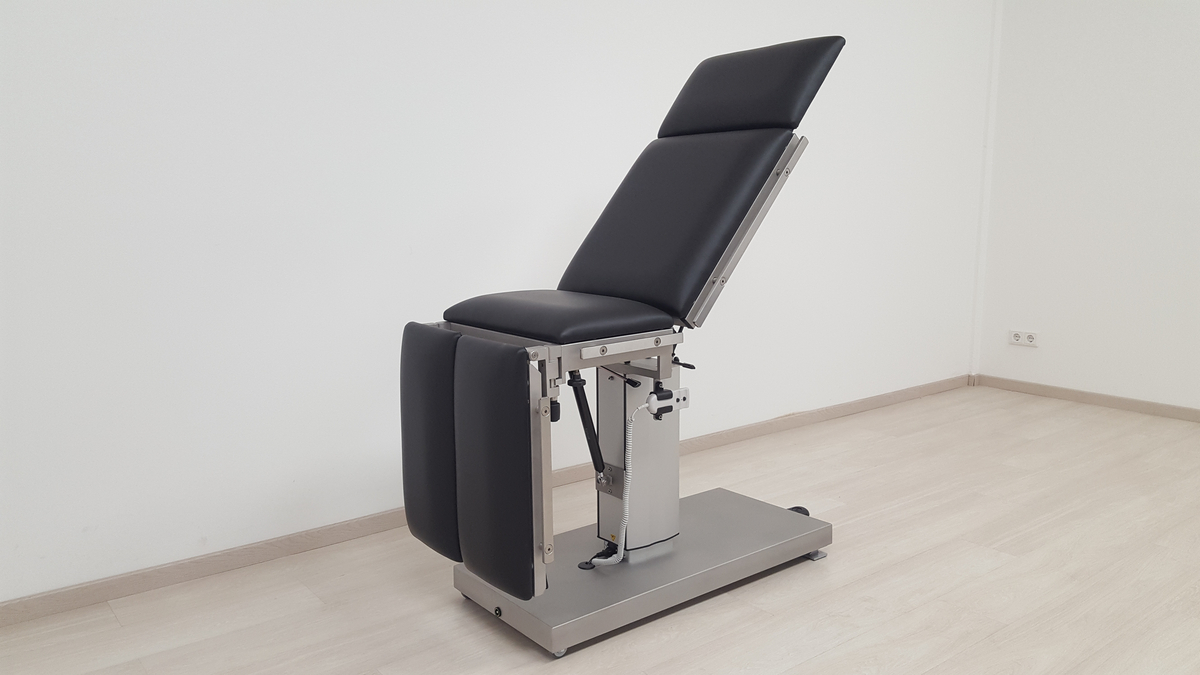

• All upholstery segments can be continuously adjusted manually using gas pressure springs (back, seat and leg sections) or clamping rod mechanism (head section). This type of construction results in an extremely competitive price for the AGA-POWER-MAT.
• Electric motorized height adjustment from 800 to 1,100 mm, control of the anodized lifting column as standard via a hand switch (foot switch for an additional charge).
• Motor connection values: 230V, 50/60Hz, 2.5A, 150W, IP30, v=9mm/s, 3,000N.
• Table surface divided into five sections for optimal and safe patient positioning.
• Upholstery segments, thickness 64 mm, removable via plug connections, electrically conductive, biocompatible, colour black.
• The base, which is equipped with a potential equalization socket and levelling feet, offers high stability.
• Lifting column made of anodized light metal.
• Standard surgical rails (25 x 10 mm) on the outside of the frame of the back, seat and leg sections, for attaching accessory components such as armrests, anesthesia pole, leg holders, etc.

The standard configuration includes:

• Standard surgical rails on the outside of the frame of the back, seat and leg sections, dimensions 25 x 10 mm, made of stainless steel, for attaching accessory components such as armrests, anesthesia sheets, leg holders, etc.
• A base equipped with a potential equalization socket and levelling feet.

To attach additional equipment components (accessories), equipment rails (dimensions 25 x 10 mm, made of CrNi steel), also known as standard surgical rails, are found on the outside of the frame of the back, seat and leg sections.

Illustration of the standard surgical rails, Article No.: OPS-170/A.

Illustration of the electric height adjustment of the examination table, Article No.: H-U 1065/E. The adjustment system has a button lock that is deactivated with a double tap.

Upholstery – electrically conductive synthetic leather MEDISTAT

The electrically conductive MEDISTAT (Cotting Group / Griffine) synthetic leather cover we use is especially suitable for medical use and is available in the colour black. The MEDISTAT synthetic leather consists of a cotton/polyester blend and a coating of 100% PVC compound. It is characterized by its tear resistance, durability, longevity and good cleaning properties as well as its resistance to disinfectants. More information about the composition and cleaning and care of MEDISTAT synthetic leather can be found here.

The black electrically conductive imitation leather cover (with equipotential bonding socket on the frame) is included in the price for the operating theater and multifunction tables. For the other products, it is available at an additional cost.
The delivery of the operating tables with NON-conductive synthetic leather covers with different colours (see upholstery colours) is also possible. The tables are then custom-made with no right of return.

We also offer the option of having the upholstery done in other colours or brands of synthetic leather. The corresponding materials should be sent to us, subject to prior arrangement. Please talk to us!
